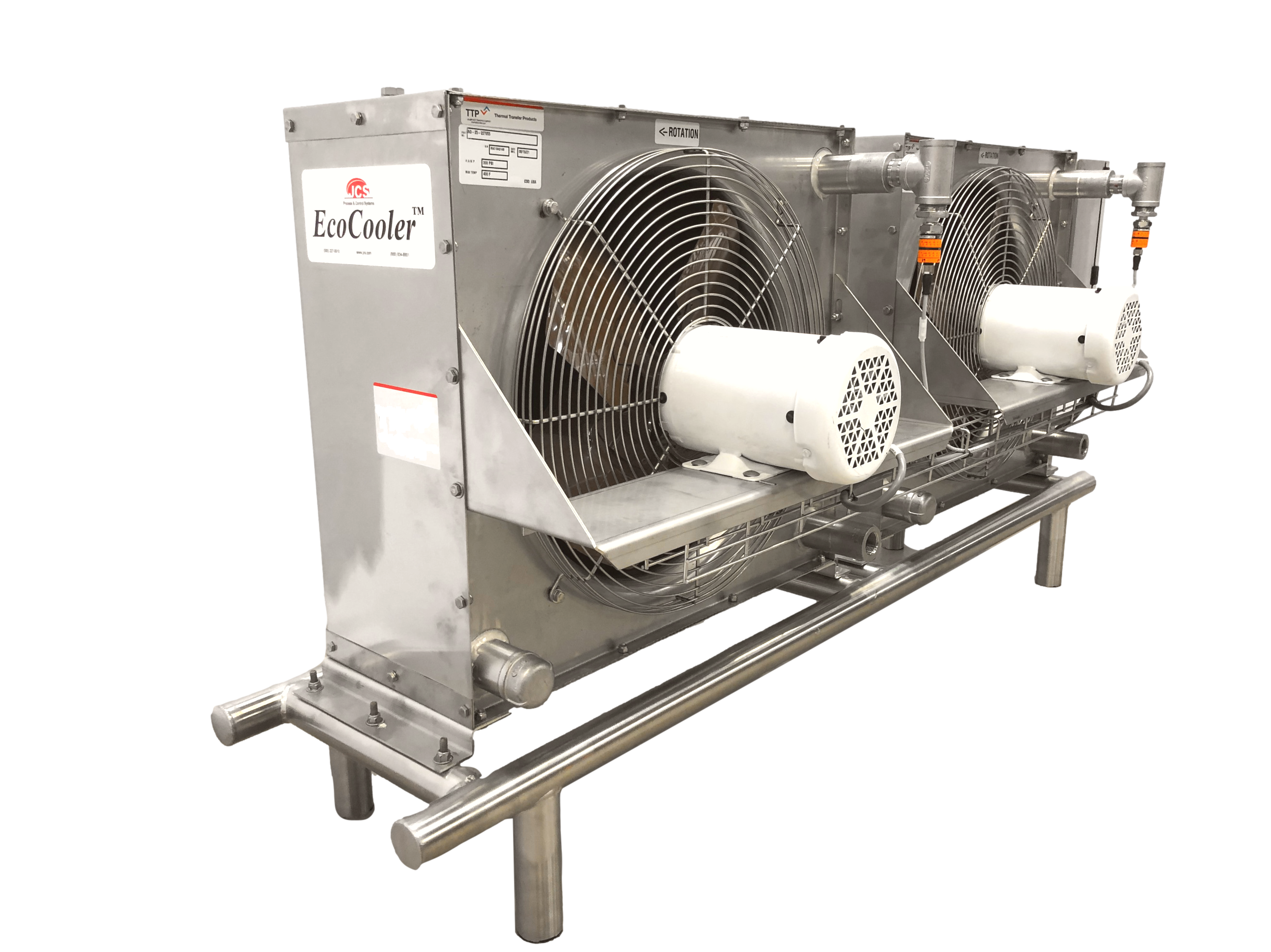

With the JCS EcoCooler™, you can reduce your homogenizer water consumption during normal operation.
The system is designed to use air cooling in place of water cooling.

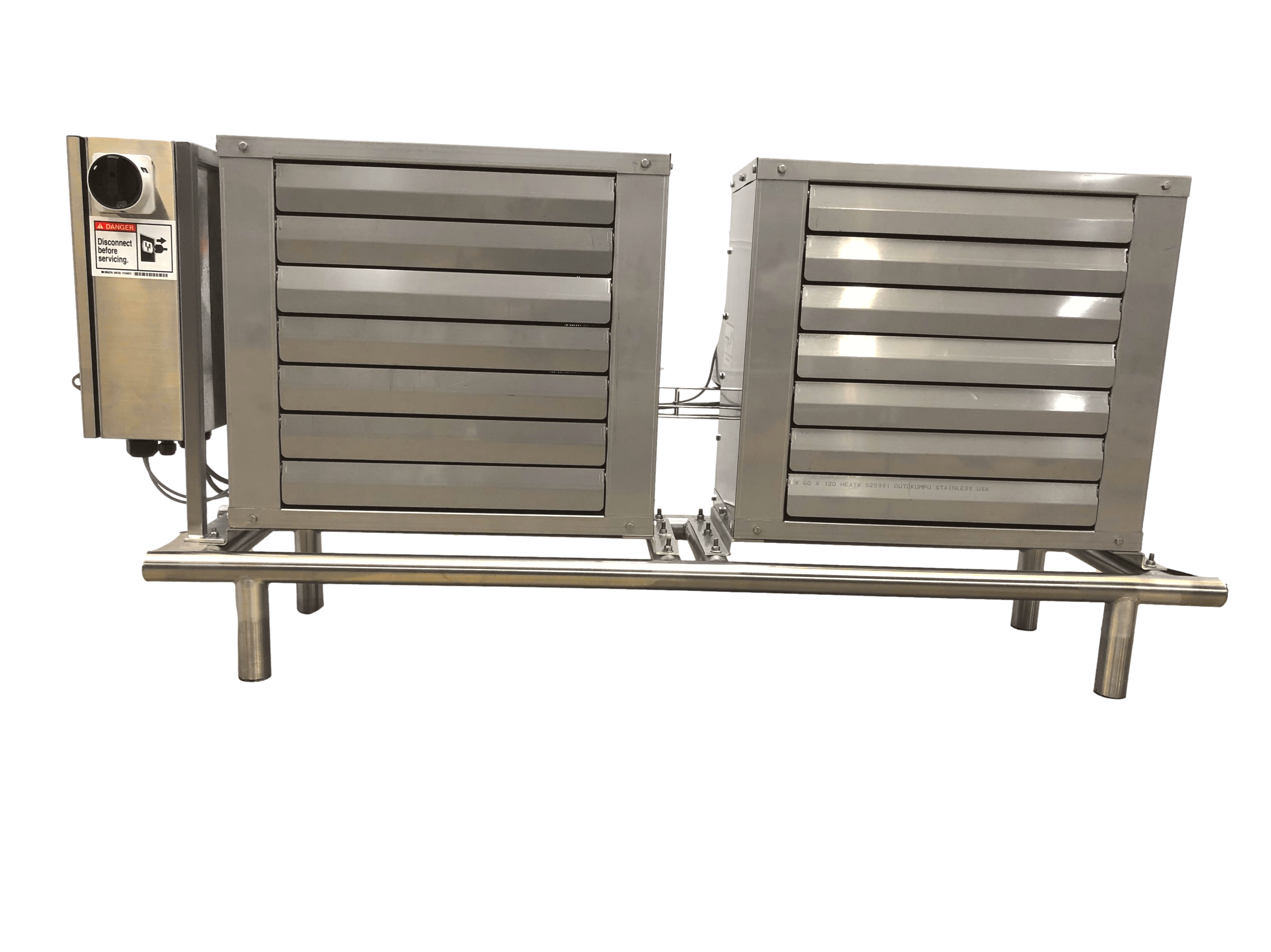

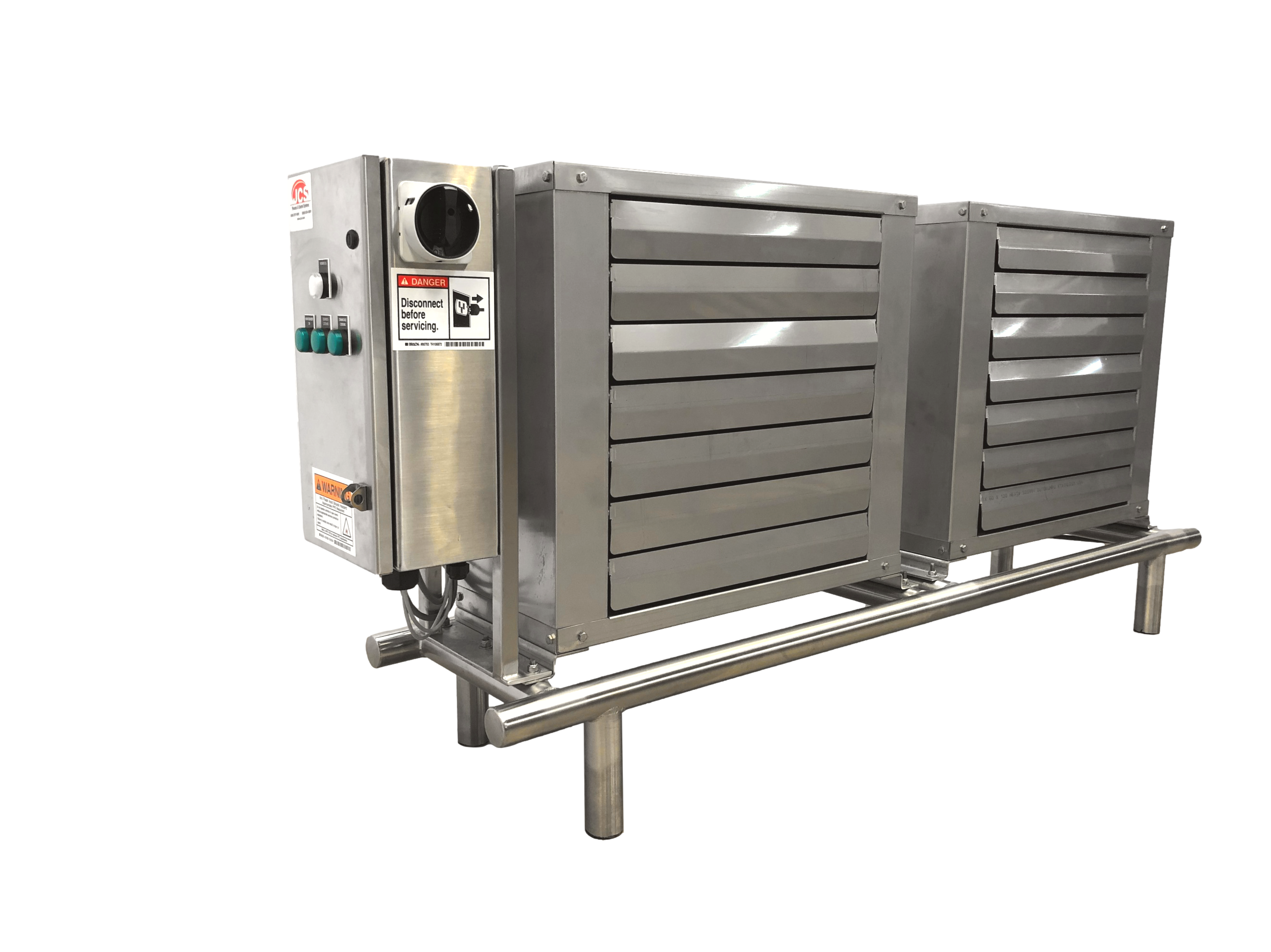

The JCS EcoCooler™ works in conjunction with your existing water system. The cooling unit can be mounted as an option on new machines, installed externally on a supporting frame, or as a retrofit kit for machines already operating.

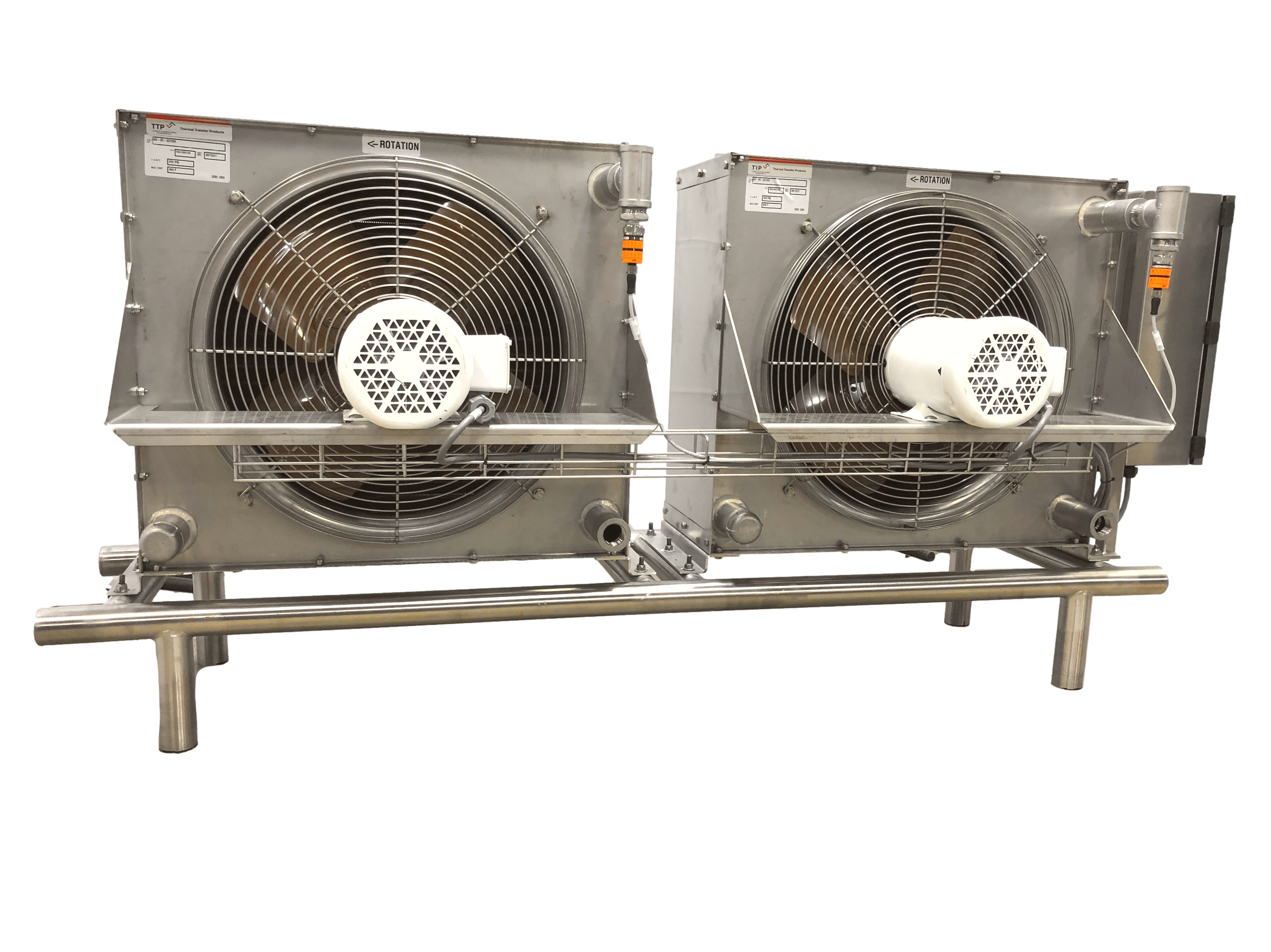

While the oil pump is powered, the oil loops will be cooled via fans. In the event that the oil temperature exceeds its setpoint, a water valve will be powered via a temperature switch, allowing water to cool the oil loop. The gearbox and crankcase oil loops are controlled independently from one another.
